Specifications
- Bore Diameter (MM): 100.0000 Rod Diameter (MM): 50.0000 Stroke (MM): 94.0000 Closed Length (MM): 450.5000 Cap End Type Code (alpha): 09 Cap End Size 1 (MM): 45.0000 Cap End Size 2 (MM): 42.0000 Cap End Size 3 (MM): 32.0000 Rod End Type Code (alpha): 09 Rod End Size 1 (MM): 45.0000 Rod End Size 2 (MM): 42.0000 Rod End Size 3 (MM): 43.0000 Cap Cushion Y/N (alpha): N Cap Rephasing Y/N (alpha): N Rod Cushion Y/N (alpha): N Rod Rephasing Y/N (alpha): N Position Sense Y/N (alpha): N Finish (alpha): K - Painted
Weight
54.76 lbs.
Notes

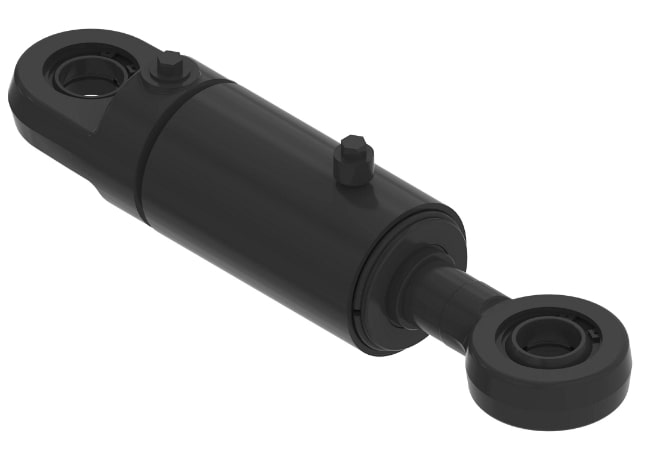

Hydraulic Cylinder - HYDRAULIC CYLINDER, 100 X 50-94, 45
Compatibility
EQUIPMENT TYPE
MODEL NUMBER
SERIAL NUMBER
ENGINE NUMBER
Skid Steer Loader
333G Skid Steer Loader (PIN: 1T0333G_ _ _F387881-)
(PIN: 1T0333G_ _ _F387881-)
Engine 4045HT059, 4045HT074
Crawler
450H, 550H and 650H Crawler
Crawler Dozer
450J Crawler Dozer (S.N. 159987-) Engine 4045HT059, 4045HT074
(S.N. 159987-)
Crawler Dozer
450K Crawler Dozer (PIN: 1T0450KX_ _F304771-)
(PIN: 1T0450KX_ _F304771-)
Crawler Dozer
550J Crawler Dozer (Tier 3)(S.N. 159987-)
(S.N. 159987-)
Engine 4045HT070
Crawler Dozer
550K Crawler Dozer (PIN: 1T0550KK_ _F305398-)
(PIN: 1T0550KK_ _F305398-)
Engine 4045HT079
Crawler Dozer
550K Crawler Dozer (PIN: 1T0550KX_ _E217276-275527) Engine 4045HT070
(PIN: 1T0550KX_ _E217276-275527)
Crawler Dozer
550K Crawler Dozer (PIN: 1T0550KX_ _F275977-303907) Engine 4045HT079
(PIN: 1T0550KX_ _F275977-303907)
Crawler Dozer
650J Crawler Dozer (Tier 3)(S.N. 159987-)
(S.N. 159987-)
Engine 4045HT070
Crawler Dozer
650K Crawler Dozer (PIN: 1T0650KK_ _F305399-)
(PIN: 1T0650KK_ _F305399-)
Engine 4045HT079
Crawler Dozer
650K Crawler Dozer (PIN: 1T0650KX_ _E216396-275533) Engine 4045HT070
(PIN: 1T0650KX_ _E216396-275533)
Crawler Dozer
650K Crawler Dozer (PIN: 1T0650KX_ _F275978-303837) Engine 4045HT079
(PIN: 1T0650KX_ _F275978-303837)
