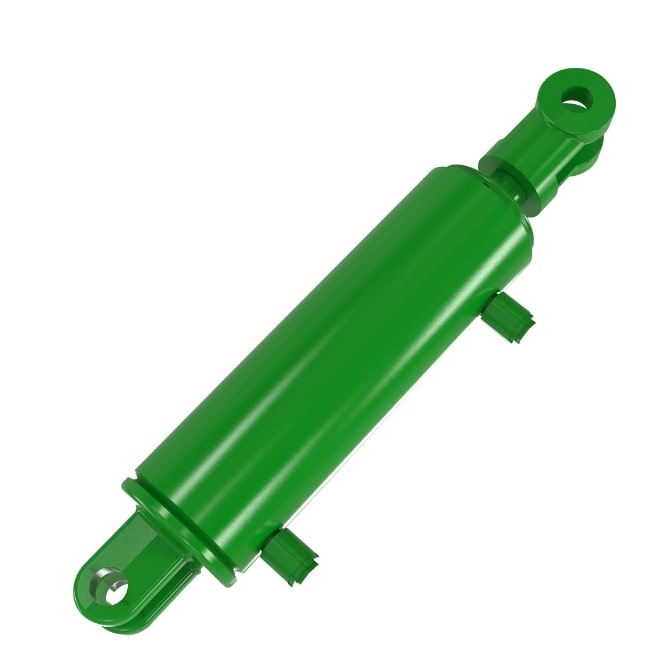

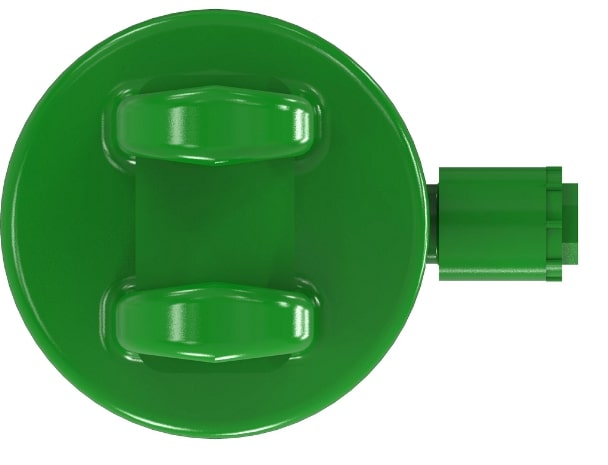

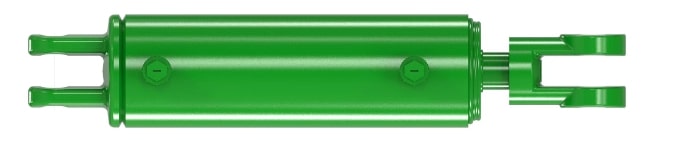

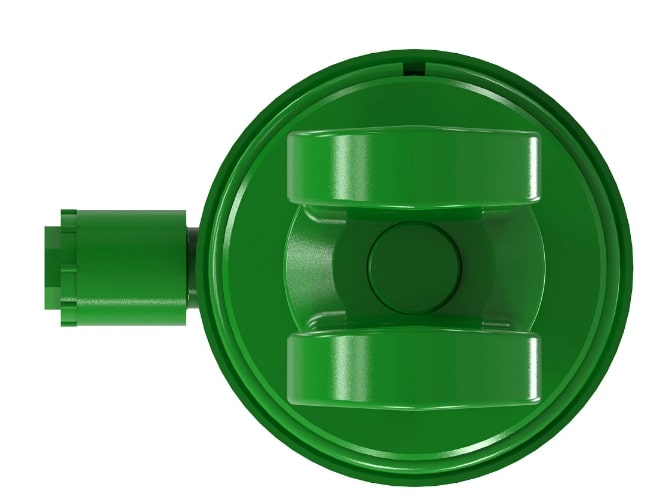

John Deere Depth Control Cylinder Part No: AH212705
$915.08
John Deere Depth Control Cylinder AH212705 is designed to provide precise control over cylinder depth, making it an essential hydraulic cylinder for a variety of equipment applications. This green cylinder is engineered for durability and efficiency, ensuring optimal performance even in challenging environments. Whether you're using it on construction or agricultural machinery, this hydraulic cylinder offers reliable and consistent operation, reducing downtime and improving the longevity of your equipment. Built to withstand heavy-duty tasks, the cylinder depth control is a key component in maintaining the accuracy and functionality of your machinery, ensuring it runs smoothly under even the toughest conditions.

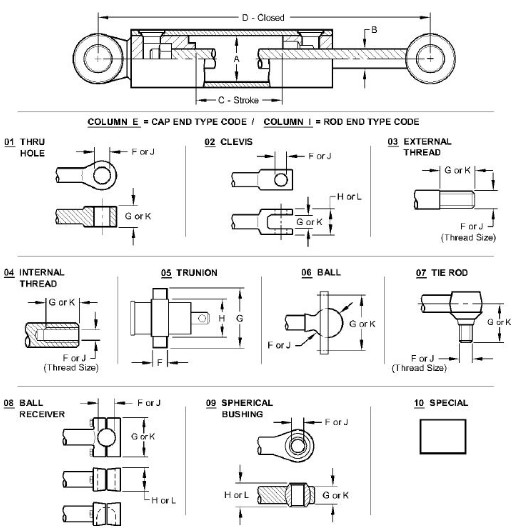

Specifications
- (A) Bore Diameter (MM): 95.2500
- (B) Rod Diameter (MM): 36.0000
- (C) Stroke (MM): 203.5000
- (D) Closed Length (MM): 514.5000
- (E) End Cap Type Code (alpha): 02
Weight
38.05 lbs.
