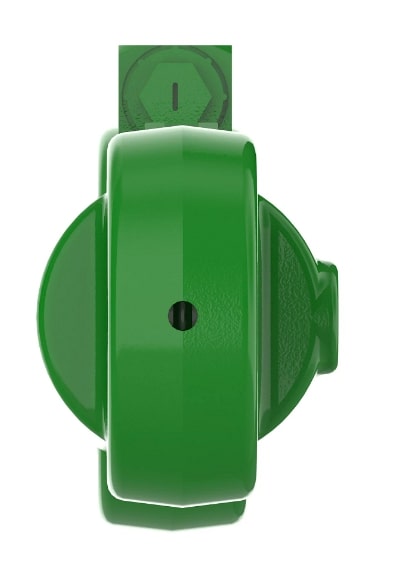

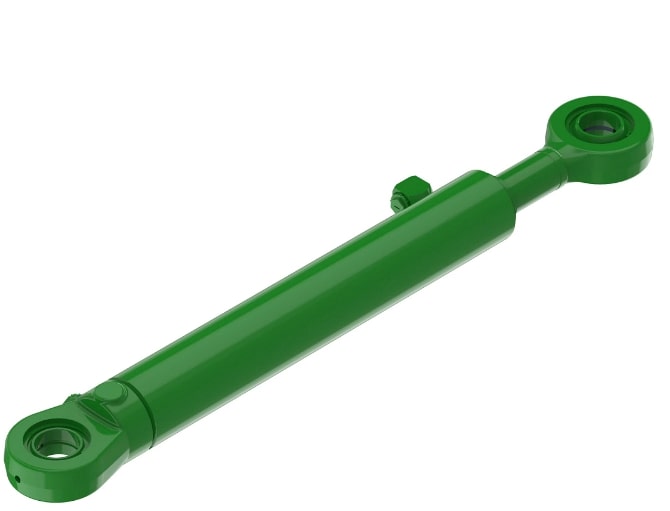

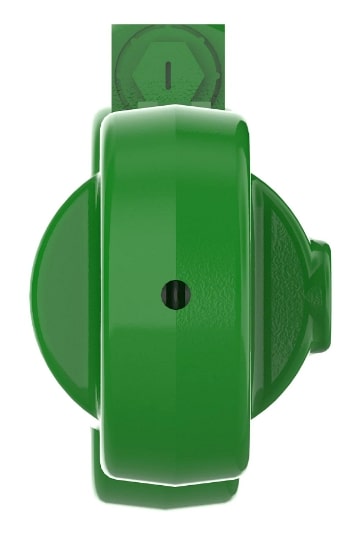

Blade Angle Cylinder
Blade Angle Cylinder
$3,414.58
Specifications
- Bore Diameter (MM): 70.0000 Rod Diameter (MM): 45.0000 Stroke (MM): 412.0000 Closed Length (MM): 778.0000 Cap End Type Code (alpha): 09 Cap End Size 1 (MM): 45.0000 Cap End Size 2 (MM): 42.0000 Cap End Size 3 (MM): 32.0000 Rod End Type Code (alpha): 09 Rod End Size 1 (MM: 45.0000 Rod End Size 2 (MM): 42.0000 Rod End Size 3 (MM): 43.0000 Cap Cushion Y/N (alpha): N Cap Rephasing Y/N (alpha): Y Rod Cushion Y/N (alpha): N Rod Rephasing Y/N (alpha): N Position Sense Y/N (alpha): N Finish (alpha): K - Painted
Weight
48.59 lbs.
Notes
Hydraulic Cylinder - HYDRAULIC CYLINDER, 70X45-412, 778
