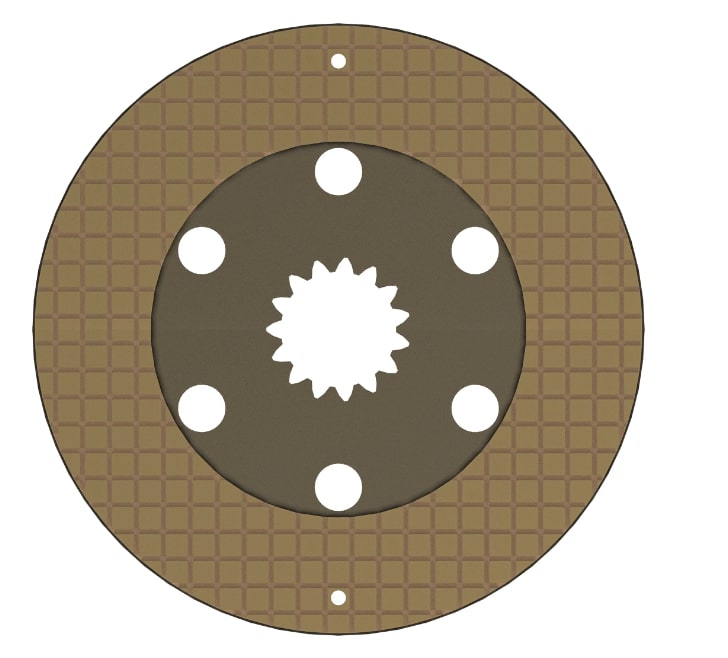

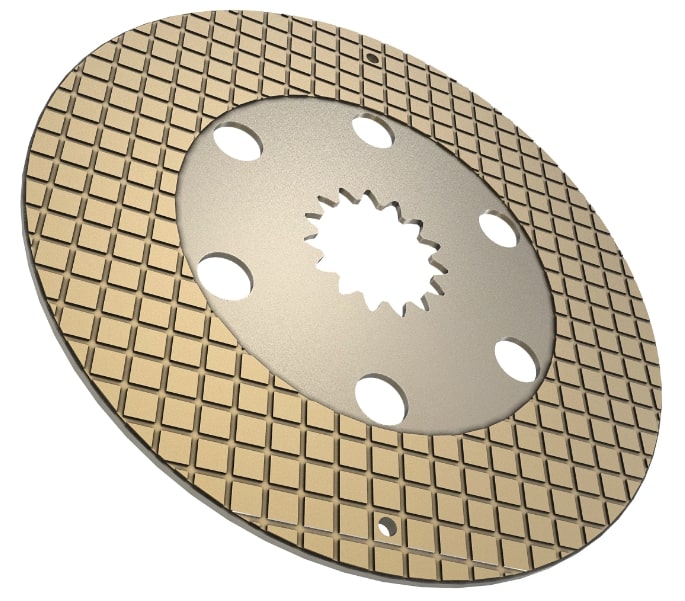

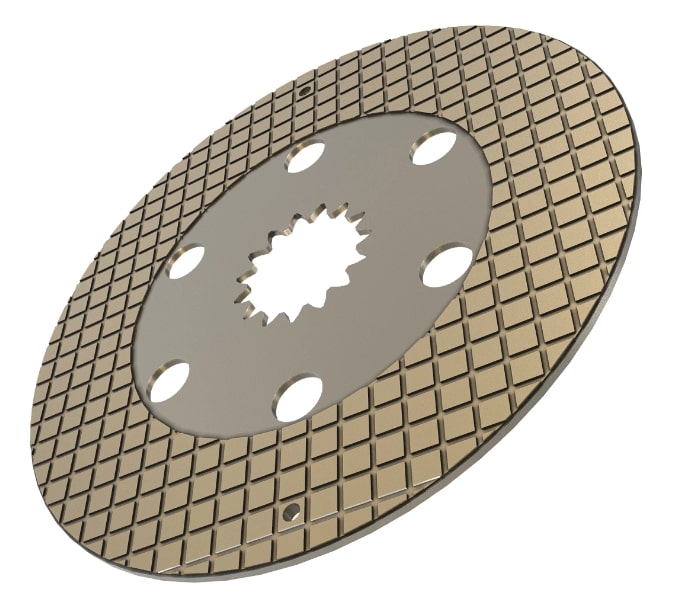

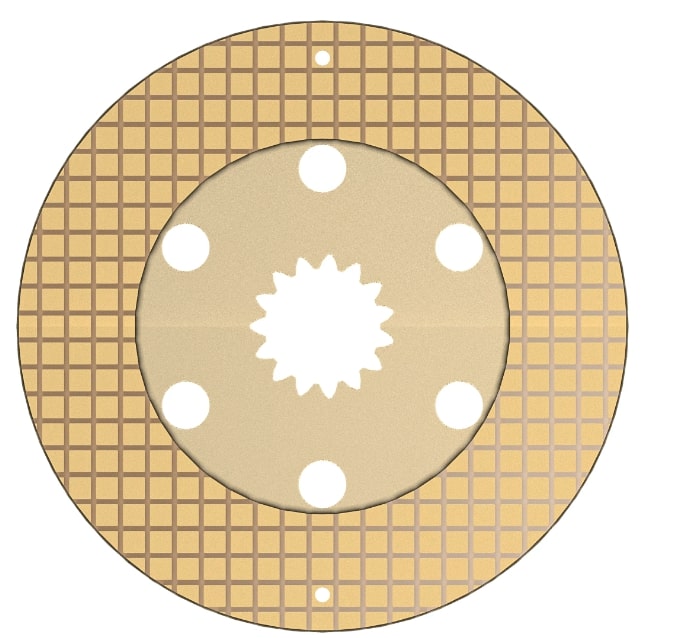

John Deere Brake Disk Part No: YZ121814
$322.36
John Deere Brake Disk YZ121814 is a precisely engineered brake disc with exceptional performance and longevity. This brake disk features a heat-treated A33M3 material, ensuring durability and resistance to wear. It has a 388 mm outer diameter and a 7.57 mm thickness, making it ideal for heavy-duty machinery. The 6-hole design and 200 mm bolt circle diameter provide a secure fit, ensuring smooth operation. With 15 teeth, this brake disk enhances the braking mechanism's efficiency and performance. Weighing 8.43 lbs., it is perfectly suited for John Deere equipment, ensuring reliable operation under demanding conditions.

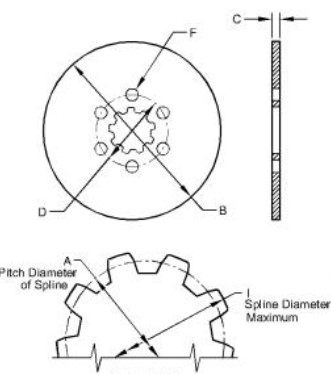

Specifications
- (A) Inside Diameter or Spline Pitch Diameter (IN): 3.4207
- (B) Outside Diameter (IN): 15.2756
- (C) Thickness (IN): 0.2980
- (D) Bolt Circle Diameter (IN): 7.8740
- (E) Number of Holes (alpha): 6
- (F) Hole Size (IN): 1.1811
Weight
8.43 lbs.
