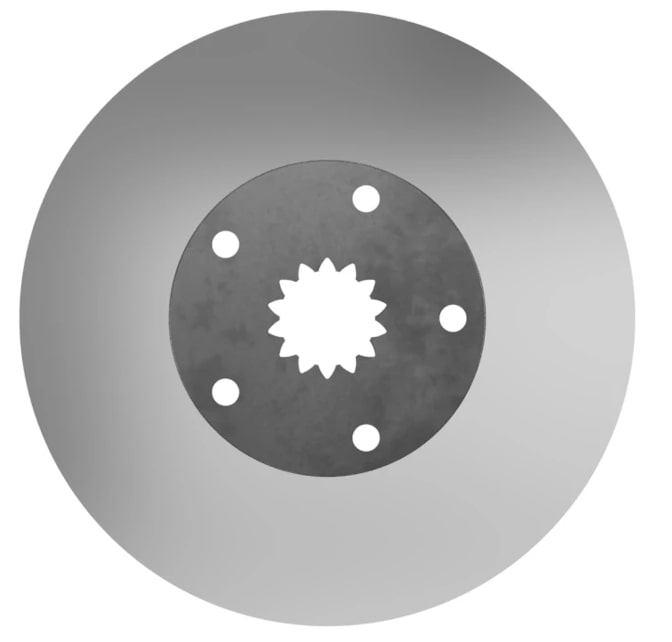

John Deere Brake Disk Part No: YZ121813
$279.70
John Deere Brake Disk YZ121813 is a high-performance brake disc designed for demanding machinery applications. With an outside diameter of 13.19 inches and a thickness of 0.298 inches, this brake disk provides reliable and efficient braking. Made from A33ME material, it is heat-treated for enhanced durability and resistance to wear. The ground and polished finish ensures smooth operation, while the 2.53-inch inside diameter fits perfectly with compatible equipment. This brake disk weighs 6.38 lbs. and is ideal for John Deere loaders and planetary axles. It is compatible with multiple models, including the 524K-II and 544 G loaders.

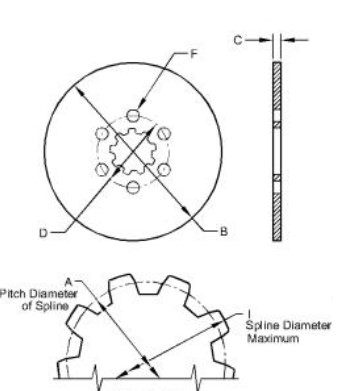

Specifications
- (A) Inside Diameter or Spline Pitch Diameter (IN): 2.5263
- (B) Outside Diameter (IN): 13.1890
- (C) Thickness (IN): 0.2980
- (D) Bolt Circle Diameter (IN): 6.4961
- (E) Number of Holes (alpha): 6
- (F) Hole Size (IN): 1.1811
Weight
6.38 lbs.
Compatibility
EQUIPMENT TYPE
MODEL NUMBER
SERIAL NUMBER
ENGINE NUMBER
Planetary Axles
1200, 1400, 1600
(PIN: 1DW524PA_ _L_10283-18489)
Engine 6068HDW74
Loader
524 P
(PIN: 1DW524PA_ _L_18490- )
Engine 6068DW401
Loader
524 P
(PIN: 1DW524K_ _ _D677549- )
Loader
524K-II
(PIN: 1DW524K_ _ _F677549- )
Loader
524K-II
(PIN: 1DW524L_ _ _F693054- )
Loader
524L
(PIN: 1YN544GA_ _DA00001- )(PIN: 1YN544GA_ _LA00001- )
Loader
544 G
(PIN: 1DW544PA_ _L_10283-18489)
Engine 6068HDW74
Loader
544 P
(PIN: 1DW544PA_ _L_18490- )
Engine 6068DW401
Loader
544 P
(PIN: 1DW544K_ _ _D677549- )
Loader
544K-II
(PIN: 1DW544K_ _ _F677549- )
Loader
544K-II
(PIN: 1DW544L_ _ _F693054- )
Loader
544L
Wheeled Feller Bunchers
643J and 843J
Wheel Feller Bunchers
740, 840, 643H and 843H
