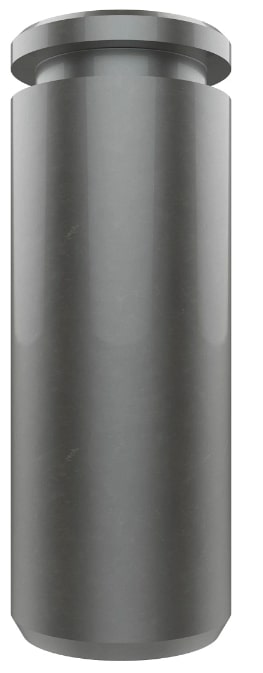

Circular Groove Pin
Circular Groove Pin
$93.51
Specifications
John Deere pins and fastening parts are designed and manufactured specifically for your machine and the applications you operate in:
- Designed to the exact specifications your machine needs to ensure quality and performance
- Designed to the exact specifications your machine needs to ensure quality and performance
- Diameter: 1.7693" Length: 4.7244" Groove Diameter: 1.3780" Groove Location: 0.4921" Groove Width: 0.2559" Chamfer Degree (alpha): 45/30 Material (alpha): 1045 Finish (alpha): C - Heat Treated and Plated
Weight
3.19 lbs.
Notes
Pin - PIN
Compatibility
EQUIPMENT TYPE
MODEL NUMBER
SERIAL NUMBER
ENGINE NUMBER
Crawler Dozer
450J Crawler Dozer (S.N. 159987-) Engine: 4045HT059,4045HT074
Crawler Dozers
450J, 550J and 650J Crawler Dozers (S.N. -159986)
Crawler Dozer
450K Crawler Dozer (PIN: 1T0450KX_ _F304771-)
Crawler Dozer
550J Crawler Dozer (Tier 3) (S.N. 159987-)
Crawler Dozer
550K Crawler Dozer (PIN: 1T0550KK_ _F305398-)
Crawler Dozer
550K Crawler Dozer (PIN: 1T0550KX_ _E217276-275527) Engine 4045HT070
Crawler Dozer
550K Crawler Dozer (PIN: 1T0550KX_ _F275977-303907) Engine 4045HT079
Crawler Dozer
650J Crawler Dozer (Tier 3)(S.N. 159987-)
Crawler Dozer
650K Crawler Dozer (PIN: 1T0650KK_ _F305399-)
Crawler Dozer
650K Crawler Dozer (PIN: 1T0650KX_ _E216396-275533) Engine 4045HT070
Crawler Dozer
650K Crawler Dozer (PIN: 1T0650KX_ _F275978-303837) Egnine 4045HT079
