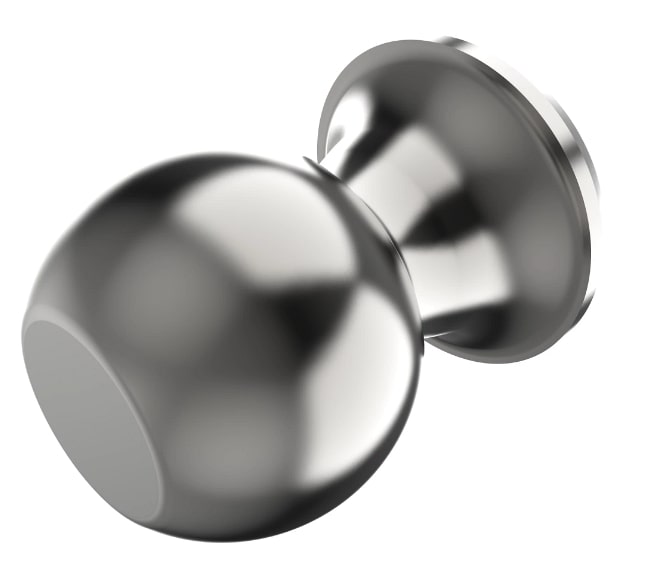

    C-Frame Pivot Ball - T196072
    C-Frame Pivot Ball - T196072
    C-Frame Pivot Ball - T196072

    John Deere C-Frame Pivot Ball Part No: T196072

    $300.86

    Quantity Selection

    The T196072 C-Frame Pivot Ball is a key component for John Deere machinery, designed to ensure smooth and stable operation of your equipment. This high-quality pivot ball provides essential support and movement within the C-frame assembly, enhancing the functionality and durability of your machinery. Manufactured to meet John Deere's stringent standards, the T196072 pivot ball from Doggett John Deere offers exceptional performance and reliability, making it an ideal choice for both repairs and upgrades.

    Specifications

    • Ball Diameter (MM): 101.8700
    • Stud Length (alpha): 8.0000
    • Size (MM): 50.0000
    • Flange Diameter (MM): 106.0000
    • Ball Height (MM): 102.0000
    • Material (alpha): 1045HR
    • Style (alpha): 1
    • Finish (alpha): A - Heat Treated
    Weight
    14.53 lbs.

    Compatibility
    EQUIPMENT TYPE
    MODEL NUMBER
    SERIAL NUMBER
    ENGINE NUMBER
    Skid Steer Loader
    333G Skid Steer Loader (PIN: 1T0333G_ _ _F387881-)
    Crawler Dozer
    450 P-Tier, Gen-A Crawler Dozer (PIN: 1T0450PA_ _D_01837-)(PIN: 1T0450PA_ _M_01837-)
    Crawler
    450H, 550H,650H Crawler
    Crawler Dozer
    450J Crawler Dozer (S.N. 159987-) Engine: 4045HT059,4045HT074
    Crawler Dozers
    450J,550J and 650J Crawler Dozers (S.N. -159986)
    Crawler Dozer
    450K Crawler Dozer (PIN: 1T0450KX_ _F304771-)
    Crawler Dozer
    550 P-Tier, Gen-A Crawler Dozer (PIN: 1T0550PA_ _D_01837-)(PIN: 1T0550PA_ _L_01837-)
    Crawler Dozer
    550J Crawler Dozer (Tier 3)(S.N. 159987-)
    Crawler Dozer
    550K Crawler Dozer (PIN: 1T0550KK_ _F305398-)
    Crawler Dozer
    550K Crawler Dozer (PIN: 1T0550KX_ _E217276-275527) Engine 4045HT070
    Crawler Dozer
    550K Crawler Dozer (PIN: 1T0550KX_ _F275977-303907) Engine 4045HT079
    Crawler Dozer
    650 P-Tier, Gen-A Crawler Dozer (PIN: 1T0650PA_ _D_01837-)(PIN: 1T0650PA_ _L_01837-)
    Crawler Dozer
    650J Crawler Dozer (Tier 3)(S.N. 159987-)
    Crawler Dozer
    650K Crawler Dozer (PIN: 1T0650KK_ _F305399-)
    Crawler Dozer
    650K Crawler Dozer (PIN: 1T0650KX_ _E216396-275533) Engine 4045HT070
    Crawler Dozer
    650K Crawler Dozer (PIN: 1T0650KX_ _F275978-303837) Engine 4045HT079
