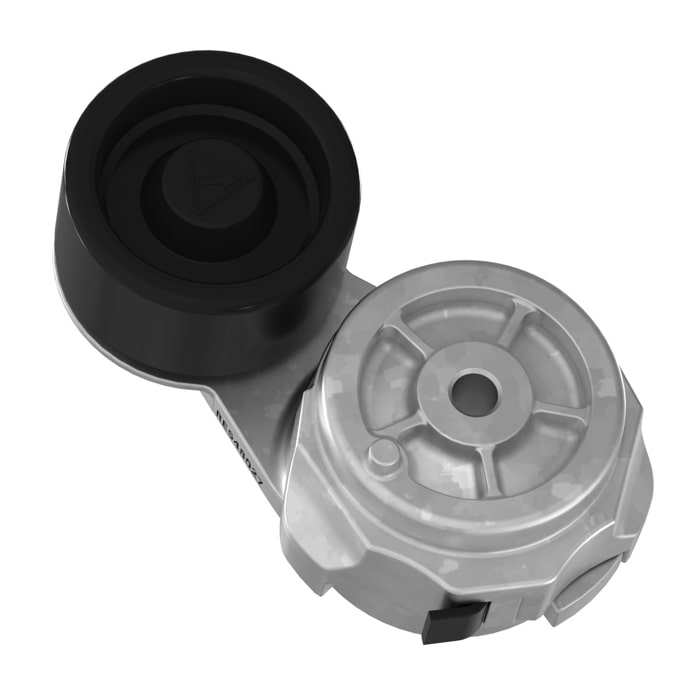

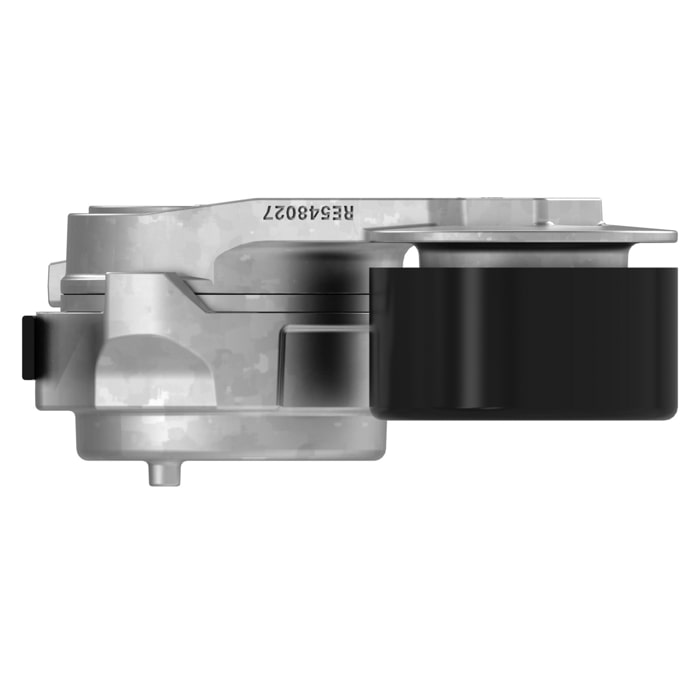

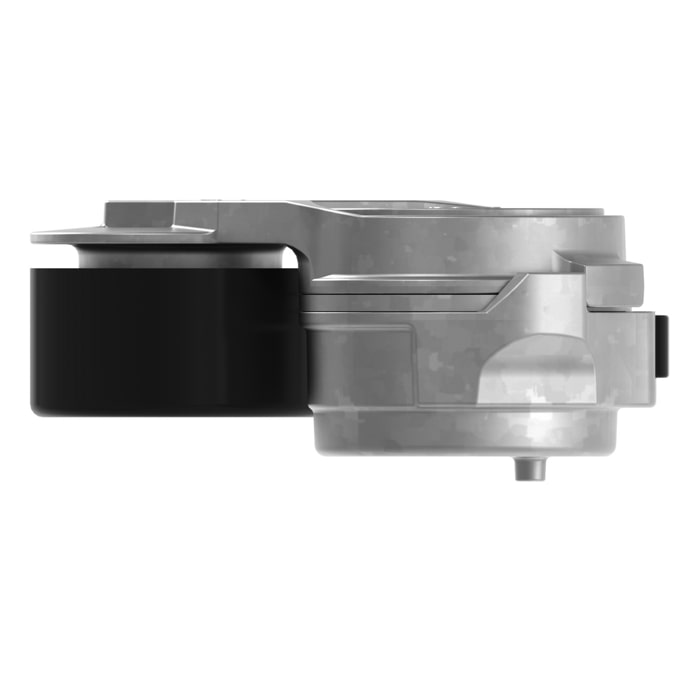

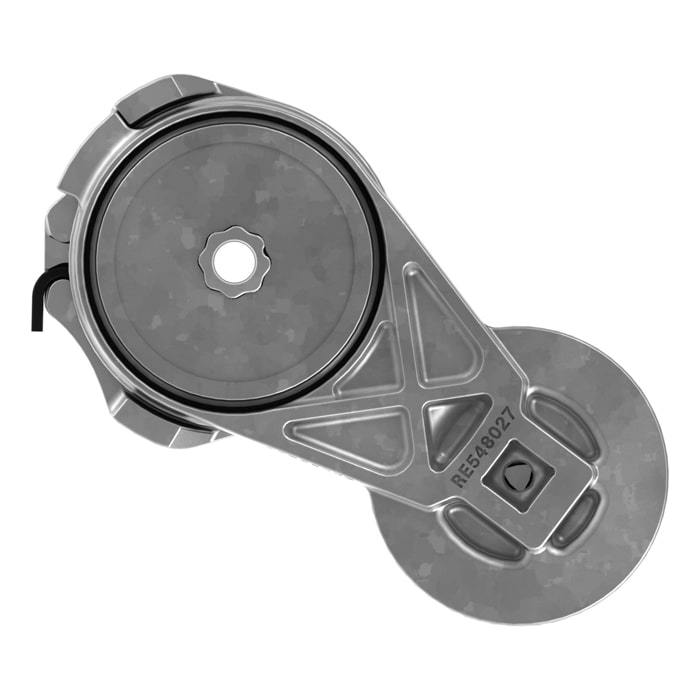

John Deere Engine Auxiliary Drive Belt Tensioner Part No: RE548027
$118.57
The John Deere Belt Tensioner is engineered to provide consistent tension to the engine's auxiliary drive belts, enhancing belt life and engine efficiency. This essential component ensures proper belt alignment and tensioning, preventing slippage and reducing wear on both the belt and engine components.

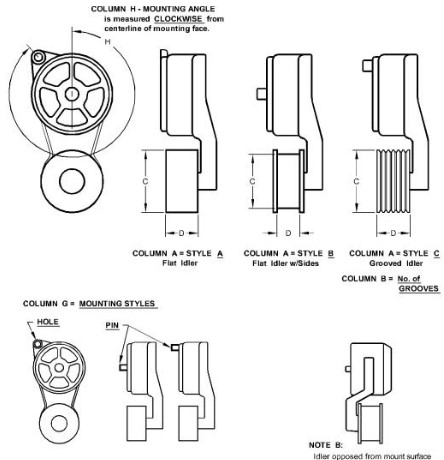

Specifications
- (A) Style (alpha): A
- (B) Number of Grooves (unity): None
- (C) Idler Diameter (IN): 2.9921
- (D) Width (IN): 1.4823
- (E) Assembly Spring Torque (IN-LBF): 179.6702
- (F) Minimum Arm Travel - Degrees (unity): 71.0000
- (G) Mounting Style (alpha): Pin
- (H) Mounting Angle (unity): 95.0000
Weight
2.77 lbs.
Compatibility
Alternative Part Numbers
- A-RE548027
