    Specifications

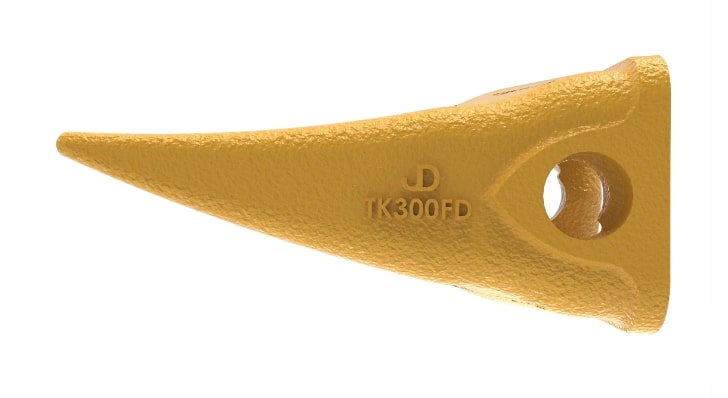

    The TK Bucket Tooth FD features the proven John Deere Fanggs profile, an excellent choice for excavators and backhoes in general-purpose applications. The Fanggs design improves penetration capability through a 22-percent reduction in required force. The FD features a curved shape for greater strength.
    • TK Bucket Teeth are engineered for maximum strength and impact absorption. This breakthrough bucket tooth system delivers speedy installation and pin retention. Using the hammer-free installation, the TK Bucket Tooth System lets you work smarter and increase profits by slashing machine downtime.
    • Nearly a 70-percent consumption ratio means you are getting more for your money
    • Reusable retention pin is never loaded for long wear life and very infrequent replacement
    • No hammers or pry bars, a simple socket or breaker bar wrench is all you need
    • Brand/Series (alpha): 300 Length: 7.9730" Width: 2.6310" Pocket Size: 2.3370" Pocket Size: 2.5280" Hole Direction (alpha): Horiz Weight: 0.0000 Material or Class (alpha): Cast
    Weight
    8.36 lbs.

    Compatibility

    EQUIPMENT TYPE
    MODEL NUMBER
    SERIAL NUMBER
    ENGINE NUMBER
    Excavator
    120D
    (PIN: 1FF120DX_ _D037001- )
    (Engine 6068HT067)
    Excavator
    130 P
    (PIN: 1FF130PA_ _F_00001- )
    (Engine 6068HT079)
    Excavator
    130G and 130GLC
    (PIN: 1F9130GX_ _D040001- )
    (Engine 4045HT084)
    Excavator
    130G
    (PIN: 1FF130GX_ _D040001- )
    Excavator
    130G
    (PIN: 1FF130GX_ _E040001- )
    Excavator
    130G
    (PIN: 1FF130GX_ _F040608- )
    Excavator
    135 P
    (PIN: 1FF135PA_ _F_00001- )
    Excavator
    135D
    Excavator
    135G
    (PIN: 1FF135GX_ _E400001- )
    Excavator
    135G
    (PIN: 1FF135GX_ _F500001- )
    Excavator
    160GLC
    (PIN: 1F9160GX_ _D055001- )
    Excavator
    180GLC
    (PIN: 1F9180GX_ _D020001- )
    Backhoe Loader
    710 P
    (PIN: 1T0710PA_ _F_02265- )
    Backhoe Loader
    710J
    Backhoe Loader
    710K
    (PIN: 1T0710KX_ _D219607- )
    Backhoe Loader
    710K
    (PIN: 1T0710KX_ _E219607- )
    Backhoe Loader
    710L
    (PIN: 1T0710LX_ _F294268-390995)
    Backhoe Loader
    710L
    (PIN: 1T0710LX_ _F390996- )
    Excavator
    Zaxis130-5G
    (PIN: 1FFDAGH0_ _C130070-
    Excavator
    Zaxis160LC-5G
    (PIN: 1F9DBGG0_ _B230001- )

    Related Parts

    TK Series Fanggs™ Tooth
    John Deere Part No: TK225FD
    $29.61 View Part
    Lock
    John Deere Part No: TK3L
    $4.79 View Part
    TK Series Fanggs™ Tooth
    John Deere Part No: TK350FD
    $95.04 View Part
    Lock
    John Deere Part No: TK4L
    $11.89 View Part
    TK Series Fanggs™ Tooth
    John Deere Part No: TK400FD
    $132.60 View Part
    TK Series Fanggs™ Tooth
    John Deere Part No: TK450FD
    $161.69 View Part
    TK Chisel Tooth
    John Deere Part No: TK400CH
    $120.01 View Part Contact Us
    Twin Tiger Tooth
    John Deere Part No: TK350TT
    $93.67 View Part
    Bucket Tooth Adapter
    John Deere Part No: U43792
    $29.11 View Part
    Standard Bucket Tooth
    John Deere Part No: TX410
    $112.77 View Part Contact Us
    Twin Tiger Tooth
    John Deere Part No: TK225TT
    $34.33 View Part
    Hensley® Top Mount Standard Tooth
    John Deere Part No: TX156
    $16.39 View Part
    TK Series Fanggs™ Tooth
    John Deere Part No: TK550FD
    $223.89 View Part

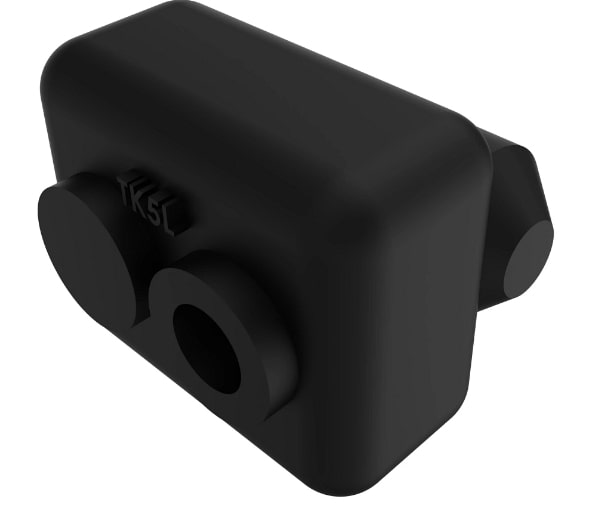

    Tooth Lock
