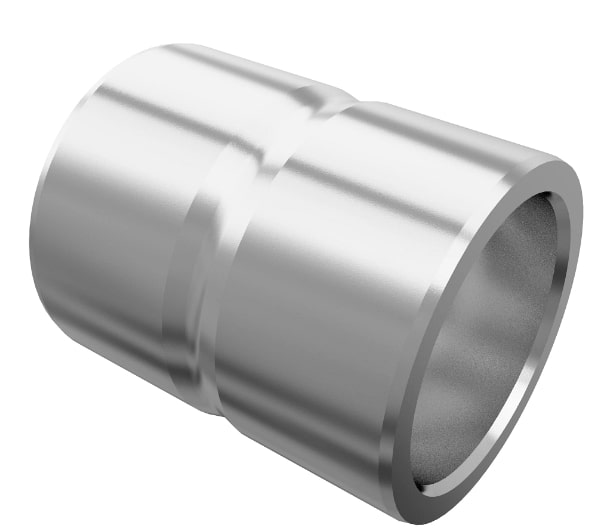

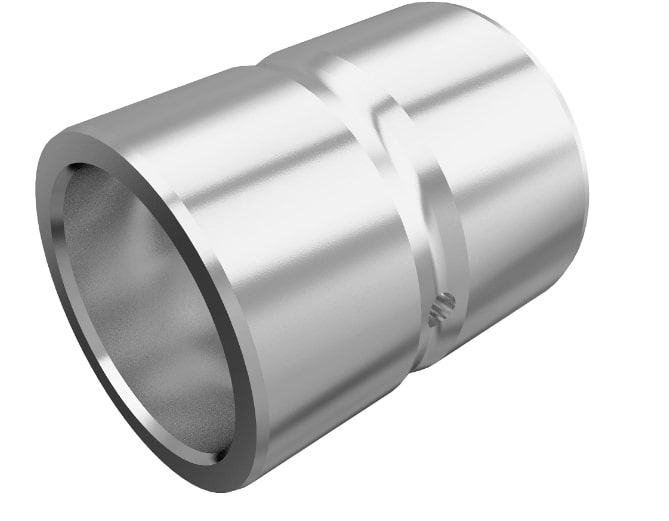

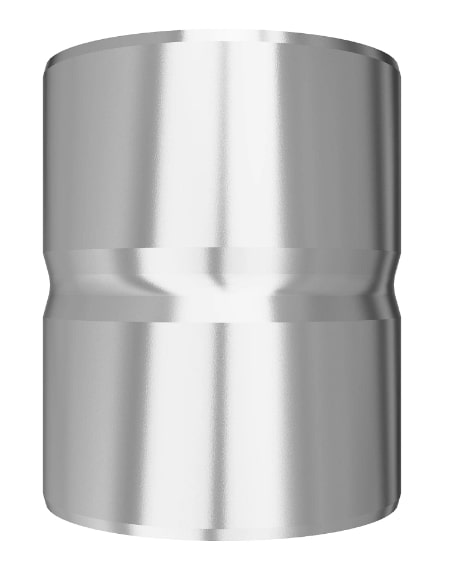

John Deere Flanged Bushing Part No: R89683
$58.16
John Deere Flanged Bushing R89683 is engineered for durability and precision. With dimensions of 39.731 X 50.08-60, this bushing features an inside diameter of 1.5642", an outside diameter of 1.9717", and a length of 2.3622". It is crafted from heat-treated material, ensuring optimal performance in demanding applications. Compatible with a range of John Deere crawler dozers and loaders, this bushing is essential for maintaining your equipment's reliability and efficiency.
Specifications
- (A) Inside Diameter (IN): 1.5642
- (B) Outside Diameter (IN): 1.9717
- (C) Length (IN): 2.3622
- (F) Location (IN): 1.1811
- (G) Hole Size (IN): 0.1969
- (H) Material (alpha): Classa
Weight
1.49 lbs.
Compatibility
EQUIPMENT TYPE
MODEL NUMBER
SERIAL NUMBER
ENGINE NUMBER
Crawler Bulldozer
400G
(S.N. 159987-)
Engine:4045HT059,4045HT074
Crawler Loaders and Bulldozers
450G, 455G, 550G, 555G and 650G
(S.N. -159986)
Crawler
450H, 550H and 650H
(PIN: 1T0450KX_ _F304771- )
Crawler Dozer
450J
Crawler Dozers
450J, 550J and 650J
Crawler Dozer
450K Crawler Dozer
(PIN: 1T0550PA_ _D_01837- )(PIN: 1T0550PA_ _L_01837- )
Loaders, Tool Carriers and Log Loader
544E and 624E, 544Eand 544E
(S.N. 159987-)
Loaders, Tool Carrier and Log Loader
544G and 624G, 544G TC and 544G
(PIN: 1T0550KK_ _F305398- )
Crawler Dozer
550 P
(PIN: 1T0550KX_ _E217276 - 275527)
Crawler Dozer
550J
(PIN: 1T0550KX_ _F275977 - 303907)
Engine 4045HT079
Crawler Dozer
550K
(PIN: 1T0650PA_ _D_01837- )(PIN: 1T0650PA_ _L_01837- )
Crawler Dozer
550K
(S.N. 159987-)
Crawler Dozer
550K
(PIN: 1T0650KK_ _F305399- )
Crawler Dozer
650 P
(PIN: 1T0650KX_ _E216396 - 275533)
Engine 4045HT070
Crawler Dozer
650J
(PIN: 1T0650KX_ _F275978 - 303837)
Engine 4045HT079
Crawler Dozer
650K
Crawler Dozer
650K
Crawler Dozer
650K
